Aluminum PVDF coated coil manufacturer, Aluminum coated coil 5052H18Aluminum PVDF coated coil manufacturer, Aluminum coated coil 5052H18Aluminum PVDF coated coil manufacturer, Aluminum coated coil 5052H18

Aluminum PVDF coated coil manufacturer, Aluminum coated coil 5052H18

  • Alloy: 1100/1050/1060/8011/3003/3004/3104/3105/5052/5083/6061
  • Temper: O/H12/H22/H14/H24/H16/H26 /H32/H38
  • Thickness: 0.20-3.0mm
  • Width: 16-1600mm
  • Thickness tolerance: +/-0.015mm, width tolerance: +/-0.5mm
  • Inner core: 76/152/300/400/500 (aluminum/steel/paper)
  • Coil weight: 50-3000kgs
  • MOQ: 1ton

Application: Mainly used in building decoration materials, stamping products, exchanger, transformer strip, capacitor strip, bottle cap material, all aluminum pop-top cans body, lid, pull ring, all sorts of lamps and lanterns parts, nameplate, PS printed materials, aluminum plastic composite tube, building mirror materials, automobile chassis, insulation materials, medical bottle cap material, pp caps material, car insulation board, health equipment parts and pipe, Marine equipment and materials, ship accessories, heat exchanger, the room partition, baffle, shifting board, washing machine cylinder body, tanks, the production of conductive body, food, chemical and brewing industry with extrusion coil, all kinds of hose, metal parts, chemical equipment, railway tank truck, conductive body materials, instruments and meters materials, welding rod, wire, conductive stranded wire, bus, etc.

Mechencial property: could meet standard GB/T-3880-2006, ASTM, JIS, and ENAW.

Cerification: ISO9001:2000, Mill test report, Certificate of origin, ROHS, SGS report.

Surface quality: Smooth, clean, be free of oil, stain, scratch, wave and corrosion, ready for paint,Oxidation and lamination.

Packing: standard export package sutiable for seafreight.

Time of delivery: within 30days

Month capacity: 2000tons/month

Exporting port: DALIAN, SHANGHAI, TIANJIN, QINGDAO

Payment term: T/T or Irrevocable LC at sight.












ALLOY NO.


TEMPER

THICKNESS(MM)

WIDTH(MM)

USAGE

10501060

H18

0.14-0.30

200-1600

PS printed materials substrate etc

105010601100

O H22

0.15-1.50

20-1600

aluminum plastic composite tube etc

1060

O

0.20-3.0

100-1600

transformer strip etc

11001060

O H22

0.20-0.50

100-1600

capacitor strip etc

10501060107011001200

O H12/2 H14/24 H16/26 H18 H19

0.20-3.0

15-1600

building decoration materials, stamping products, building mirror materials, nameplate, insulation materials ,etc

30033105

O H12/H22 H14/24 H16/26 H18 H19

0.20-3.0

15-1600

Washing machine cylinder body, heat exchanger, Room partition, baffle, hall board, automotive insulation board, deep drawing products, sanitary equipment parts and pipes, roof building materials, automobile license plate, etc

30043104

O H12/H22 H14/24 H16/26 H18/28 H32 H36 H38

0.20-3.0

15-1600

all aluminum pop-top cans body ,all sorts of lamps and lanterns parts, automobile chassis, the television lagging, etc

30053003

H14 H16

0.20-3.0

15-1600

Cell lithium battery shell, etc

4343/4004/4343

O H14 H24 H18

0.20-3.0

20-1600

Brazing composite materials etc

500550525082508351826082

O H111 H12 H14 H16 H18 H22 H32 H24 H34 H26 H36 H38 H112

0.20-30

20-1600

Washing machine cylinder body, tanks, all aluminum POP cans, lid, pull ring, Marine equipment and materials, railway tank truck, Marine equipment and materials ship accessories, instruments materials brazing composite materials etc



8011

H14 H24 H16 H26

0.14-0.30

200-1600

Medical cap material, PP caps  material, etc

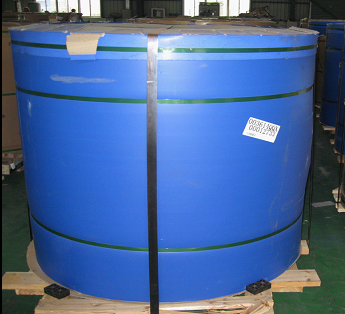

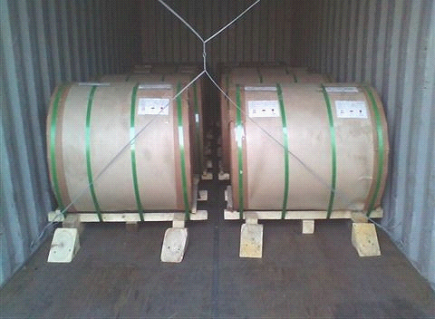

 Package photo

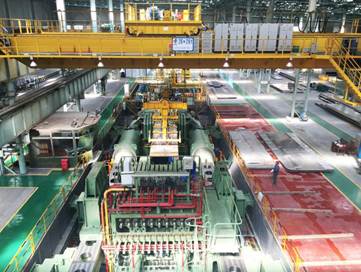

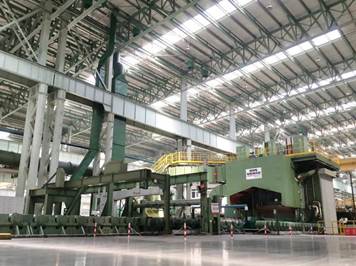

Factory photo

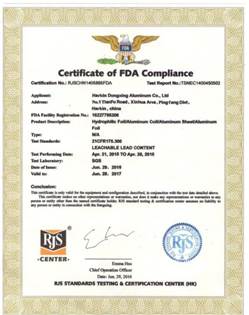

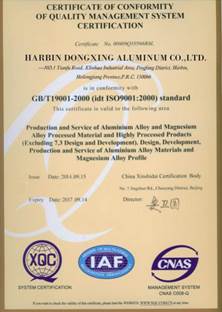

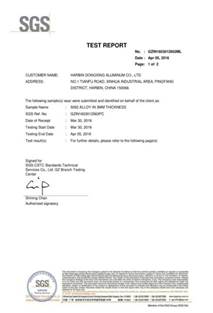

Certification



FAQ:


Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 45-60 days if the goods are not in stock.
     it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: 30% T/T in advance ,balance before shipment. L/C
